| Mechanical |

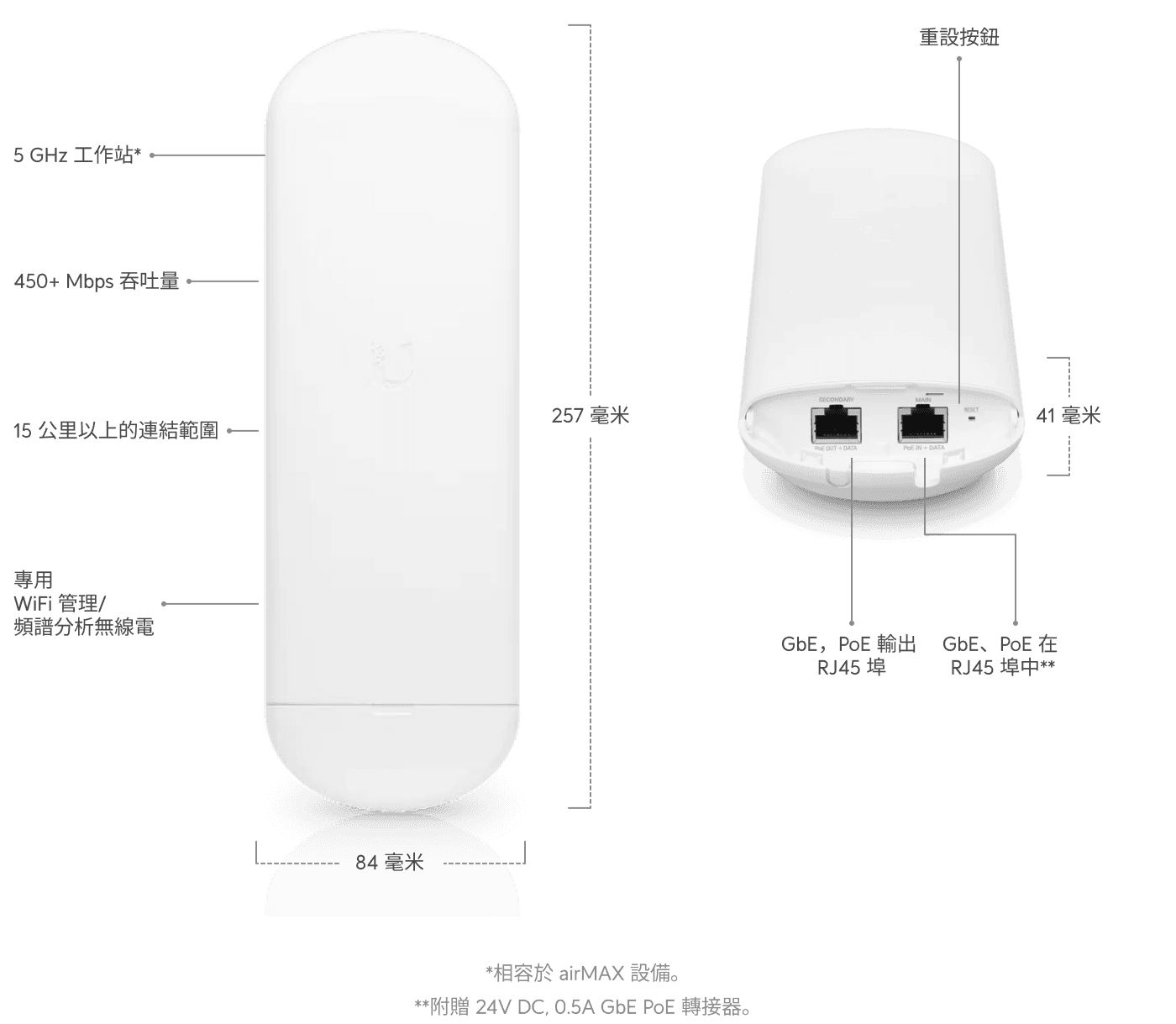

Dimensions
With Mount
Without Mount |
257 x 84 x 30 mm
(10.12 x 3.31 x 1.18")
257 x 84 x 41 mm (10.12 x 3.31 x 1.61") |
| Weight | 233 g (8.22 oz) |
| Gain | 16 dBi |
| Max. Power Consumption | 9W |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| LEDs | Power, ETH1, ETH2, (4) Signal Strength |
| Power Supply | 24VDC, 0.5A Gigabit PoE Adapter |
| Power Method | 802.3af or Passive PoE
(Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 24V ±10% |
| Mounting | Pole and Wall Mounting Kits Included |
| ESD/EMP Protection | ±24 kV Contact/Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Operating Frequency (MHz) |
| Worldwide |
5150-5875 |
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3 |
5150-5250
5250-5350
5240-5725
5725-5850 |
| Management Radio (MHz) |
| Worldwide |
2412 - 2472 |
| US/CA |
2412 - 2462 |
