| Mechanical |

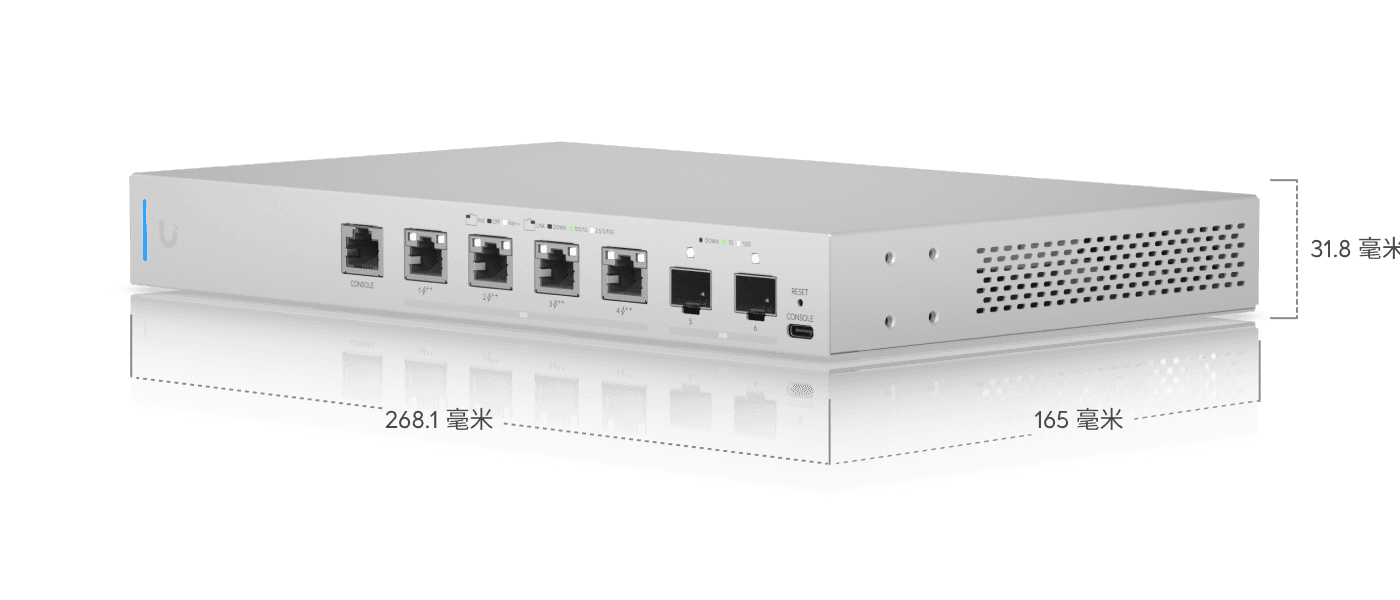

| Dimensions |
165 x 268.1 x 31.8 mm
(6.50 x 10.56 x 1.25") |
| Weight |
1.3 kg (2.87 lb) |

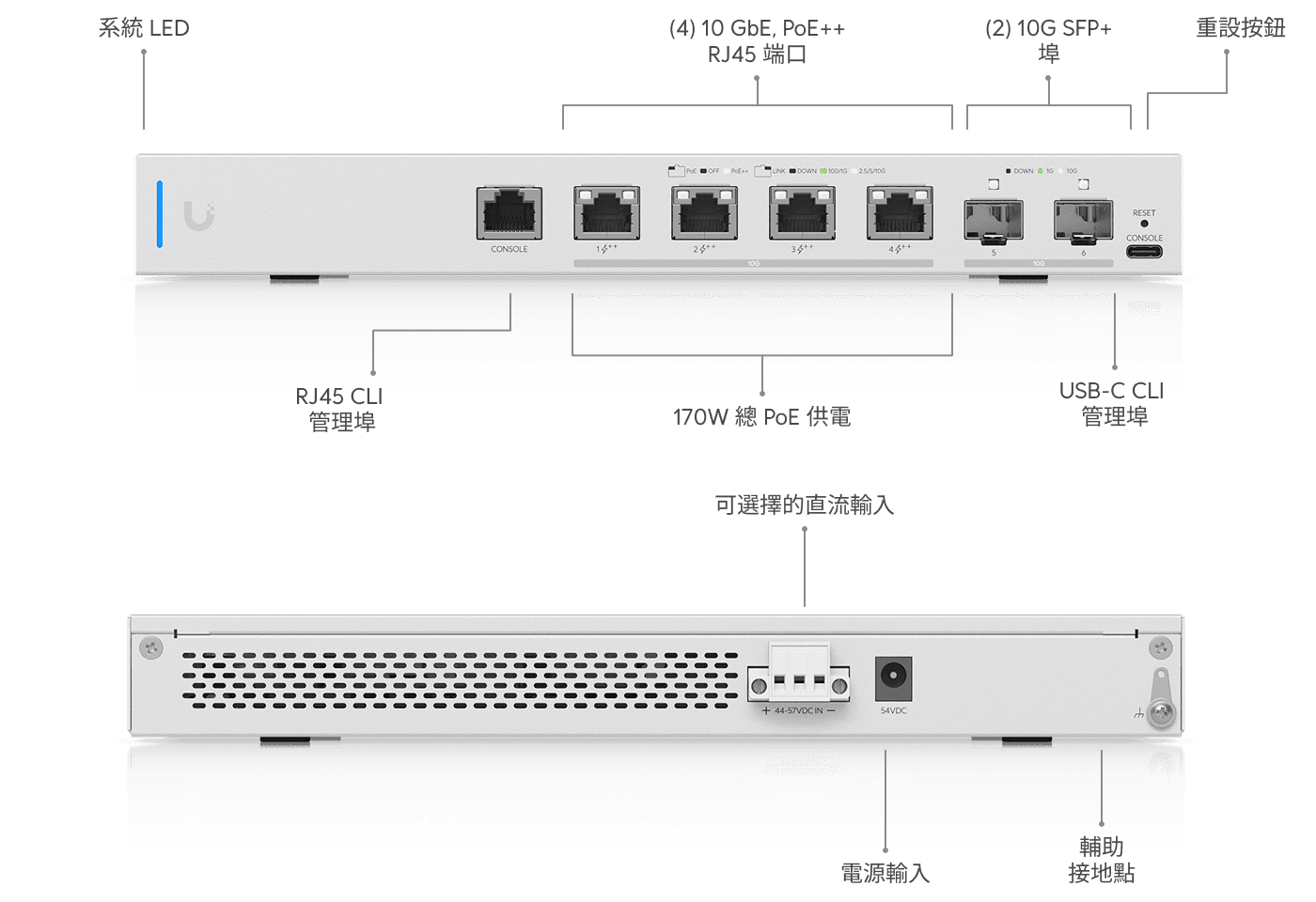

| Interfaces |
Networking
(4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports
(2) 1/10G SFP+ Ethernet Ports
Management
Ethernet In-Band (1) RJ45
Serial Port Out-of-Band
(1) USB Type C Port Out-of-Band
|

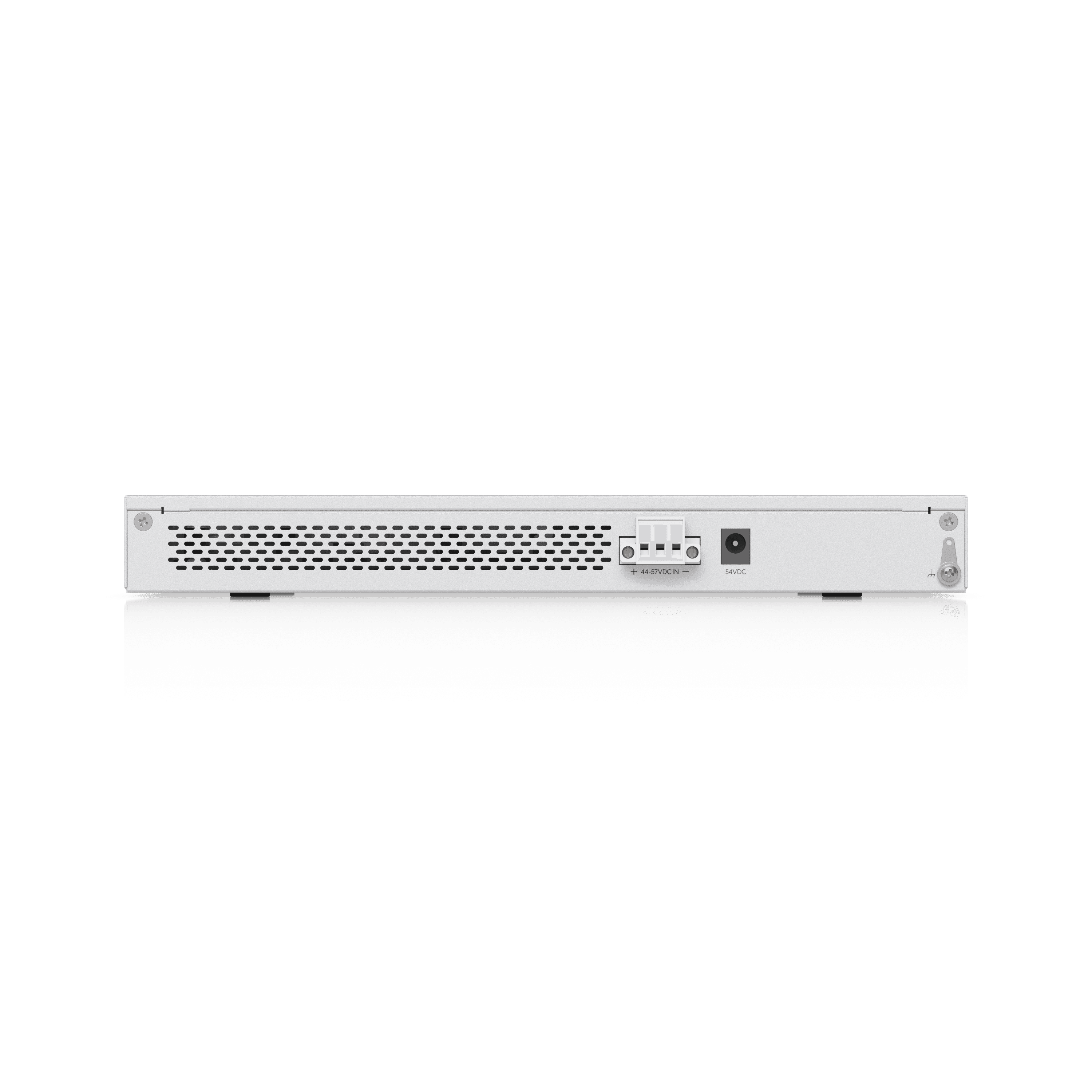

| Power Method |
54VDC, 3.88A Power Adapter (Included)
or DC Input with Terminal Block |
| Power Supply |
External AC/DC Adapter (Included)
or DC Power Source |
| Supported Voltage Range |
44 to 57VDC |
| Max. Power Consumption (Excluding PoE Output) |
40W |
LEDs
System
RJ45 Data Ports
SFP+ Data Ports |
Status
PoE; Speed/Link/Activity
Link/Activity |
| ESD/EMP Protection |
Air: ± 18 kV, Contact: ± 12 kV |
| Shock and Vibration |
ETSI300-019-1.4 Standard |
| Operating Temperature |
-5 to 45° C (23 to 113° F) |
| Operating Humidity |
5 to 95% Noncondensing |
| Certifications |
CE, FCC, IC |
| POE |
| PoE Interfaces |
PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-)
(Pair B 4 , 5+; 7, 8-) |
| Max. 802.3bt Wattage per Port by PSE |
60W |
| Voltage Range 802.3af Mode |
44-57V |
| Voltage Range 802.3at/bt Mode |
50-57V |
